App 02: Stopwatch

August 10, 2019 ~ Jamie Foster ~ Leave a comment

This is a stopwatch app with a lap counter and a list of lap times.

Had to learn alot about layouts in xaml to get this one looking similar to the one from the book, which was fun.

MainPage.xaml

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             x:Class="Stopwatch.MainPage"
             BackgroundColor="Black">

    <ContentPage.Resources>
        <ResourceDictionary>
            <Style x:Key="BlackButtonStyle" TargetType="Button">
                <Setter Property="TextColor"
                        Value="White" />
                <Setter Property="BackgroundColor"
                        Value="Black" />
                <Setter Property="CornerRadius"
                        Value="15" />
                <Setter Property="BorderColor"
                        Value="White"/>
                <Setter Property="BorderWidth" Value="2" />
            </Style>
        </ResourceDictionary>
    </ContentPage.Resources>

    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="4*"/>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="3*"/>
        </Grid.RowDefinitions>

        <Grid.ColumnDefinitions>
            <ColumnDefinition/>
            <ColumnDefinition/>
        </Grid.ColumnDefinitions>

        <Label Text="Stopwatch" Grid.Row="0" Grid.ColumnSpan="2"
               HorizontalTextAlignment="Start" TextColor="White" />
        <Label Grid.Row="1" Grid.ColumnSpan="2" Grid.Column="0"
               HorizontalTextAlignment="End" Text="Current lap" TextColor="White" />
        <Label x:Name="CurrentLapTimeDisplay" Grid.Row="2" Grid.ColumnSpan="2"
               Grid.Column="0" FontSize="20" HorizontalTextAlignment="End"
               Margin="0,0,12,0" Text="0:00:0" TextColor="White" />

        <StackLayout Grid.Row="3" Grid.ColumnSpan="2" Grid.Column="0" >
            <ProgressBar x:Name="LapProgressBar" ></ProgressBar>
            <Label x:Name="TotalTimeDisplay" HorizontalTextAlignment="Center" FontSize="50"
                   Text="0:00:0" TextColor="White"></Label>
        </StackLayout>


        <Button x:Name="StartButton" Grid.Row="4" Grid.Column="0" Text="start" Margin="12,0,0,0"
                Clicked="StartButton_OnClicked"
                Style="{StaticResource BlackButtonStyle}" />
        <Button x:Name="StopButton" Grid.Row="4" Grid.Column="0" Text="stop"  IsVisible="False" Margin="12,0,0,0"
                Clicked="StopButton_OnClicked"
                Style="{StaticResource BlackButtonStyle}" />
        <Button x:Name="ResetButton" Grid.Row="4" Grid.Column="1" Text="reset"  IsVisible="False" Margin="0,0,12,0"
                Clicked="ResetButton_OnClicked"
                Style="{StaticResource BlackButtonStyle}" />
        <Button x:Name="LapButton" Grid.Row="4" Grid.Column="1" Text="lap" Margin="0,0,12,0" Clicked="LapButton_OnClicked"
                Style="{StaticResource BlackButtonStyle}" />


        <ListView Grid.Row="5" Grid.ColumnSpan="2" Grid.Column="0" x:Name ="LapsTable" BackgroundColor="Black" >

        </ListView>

    </Grid>

</ContentPage>

ManiPage.xaml.cs

using System;
using System.Collections.ObjectModel;
using Xamarin.Forms;

namespace Stopwatch
{
    public partial class MainPage
    {
        private readonly ObservableCollection<string> _lapTimes;
        private TimeSpan _totalTime;
        private TimeSpan _currentLapTime;
        private TimeSpan _previousLapTime;
        private DateTime _previousTick;
        private bool _isRunning;

        public MainPage()
        {
            InitializeComponent();
            InitializeTimers();

            _lapTimes = new ObservableCollection<string>();
            LapsTable.ItemsSource = _lapTimes;
        }

        private void InitializeTimers()
        {
            _totalTime = TimeSpan.Zero;
            _currentLapTime = TimeSpan.Zero;
            _previousLapTime = TimeSpan.Zero;
            _previousTick = DateTime.MinValue;
        }

        private void Start()
        {
            _isRunning = true;
            StartButton.IsVisible = false;
            StopButton.IsVisible = true;
            LapButton.IsVisible = true;
            ResetButton.IsVisible = false;
            _previousTick = DateTime.UtcNow;
            Device.StartTimer(TimeSpan.FromSeconds(.1), TimerTick);
        }

        private void Stop()
        {
            _isRunning = false;
            StartButton.IsVisible = true;
            StopButton.IsVisible = false;
            ResetButton.IsVisible = true;
            LapButton.IsVisible = false;
        }

        private void Reset()
        {
            InitializeTimers();
            ShowCurrentTime();
            _lapTimes.Clear();
        }

        private bool TimerTick()
        {
            var delta = DateTime.UtcNow - _previousTick;
            _previousTick += delta;
            _totalTime += delta;
            _currentLapTime += delta;

            ShowCurrentTime();
            return _isRunning;
        }

        private void ShowCurrentTime()
        {
            TotalTimeDisplay.Text = _totalTime.ToString("m':'ss':'f");
            CurrentLapTimeDisplay.Text = _currentLapTime.ToString("m':'ss':'f");
            LapProgressBar.Progress = _currentLapTime.TotalSeconds;

        }

        private void InsertLapInList(TimeSpan timeSpan)
        {
            var lapNumber = _lapTimes.Count + 1;
            var lap = "Lap " + lapNumber + " " + timeSpan.ToString("m':'ss':'f");
            _lapTimes.Add(lap);
        }

        private void StartButton_OnClicked(object sender, EventArgs e)
        {
            Start();
        }

        private void StopButton_OnClicked(object sender, EventArgs e)
        {
            Stop();
        }

        private void ResetButton_OnClicked(object sender, EventArgs e)
        {
           Reset();
        }

        private void LapButton_OnClicked(object sender, EventArgs e)
        {
            InsertLapInList(_currentLapTime);
            _previousLapTime = _currentLapTime;
            _currentLapTime = TimeSpan.Zero;

        }
    }
}

See you with the next app.

App 01: Tally

August 10, 2019August 10, 2019 ~ Jamie Foster ~ Leave a comment

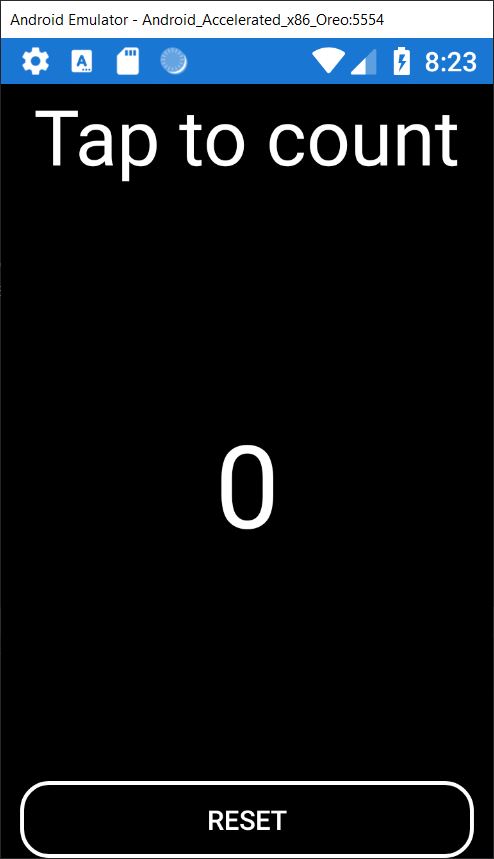

The first app is a simple counting app, it can be used to count things such as glasses of water you’ve drank (or beer).

As you can see the app is pretty simple but it was a great starting point for me getting to know XAML.

Here is the MainPage.xaml

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             x:Class="Tally.MainPage" BackgroundColor="Black">

    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
            <RowDefinition Height="Auto"/>
        </Grid.RowDefinitions>

        <Label Text="Tap to count" TextColor="White" FontSize="40" HorizontalOptions="Center" HorizontalTextAlignment="Center" Grid.Row="0"/>
        <Label x:Name="CountLabel" Grid.Row="1" HorizontalTextAlignment="Center" VerticalOptions="Center" Text="" FontSize="60" TextColor="White"/>
        <Button x:Name="ResetButton" Grid.Row="2" Clicked="ResetButton_OnClicked"
                Text="Reset" CornerRadius="15" HeightRequest="40"
                BackgroundColor="Black" BorderColor="White" BorderWidth="2" TextColor="White"
                Padding="10,0,10,0" Margin="10,0,10,0"></Button>

        <ContentView HorizontalOptions="FillAndExpand"
                     VerticalOptions="FillAndExpand"
                     Grid.Row="1"
                     Grid.Column="0">
            <ContentView.GestureRecognizers>
                <TapGestureRecognizer Tapped="OnTapped"/>
            </ContentView.GestureRecognizers>
        </ContentView>

    </Grid>

</ContentPage>

And MainPage.xaml.cs

using System;
using Xamarin.Forms;

namespace Tally
{
    public partial class MainPage
    {
        private int _count;

        public MainPage()
        {
            InitializeComponent();
            if (Application.Current.Properties.ContainsKey("Count"))
            {
                _count = Int32.Parse(Application.Current.Properties["Count"].ToString());
                UpdateCountLabelText();
            }
        }

        private void ResetButton_OnClicked(object sender, EventArgs e)
        {
            _count = 0;
            UpdateCountLabelText();
        }

        private void OnTapped(object sender, EventArgs e)
        {
            _count++;
            UpdateCountLabelText();
        }

        private void UpdateCountLabelText()
        {
            CountLabel.Text = _count.ToString("N0");
            Application.Current.Properties["Count"] = _count;
        }

    }
}

A good start, see you with the next app.

Introduction

August 10, 2019 ~ Jamie Foster ~ Leave a comment

I want to learn about Xamarin.Forms and I have an old book on my bookshelf called ‘101 Windows Phone 7 Apps – Volume 1: Developing Apps 1-50’. I thought it would be a fun challenge to recreate the apps described in that book in Xamarin.Forms with Android as the target platform.

This blog was created to record my progress. Thanks for visiting.
